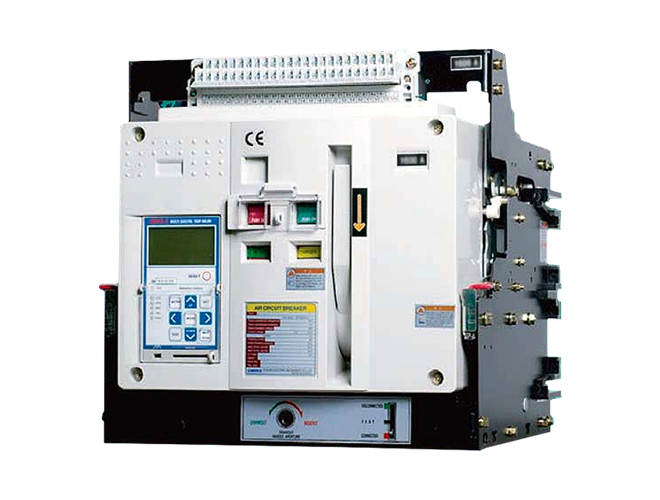

O-SUNG Air Circuit Breaker, ACB

오성기전 기중차단기

OSB-II, SB ACB

690V 400~6000A Breakers

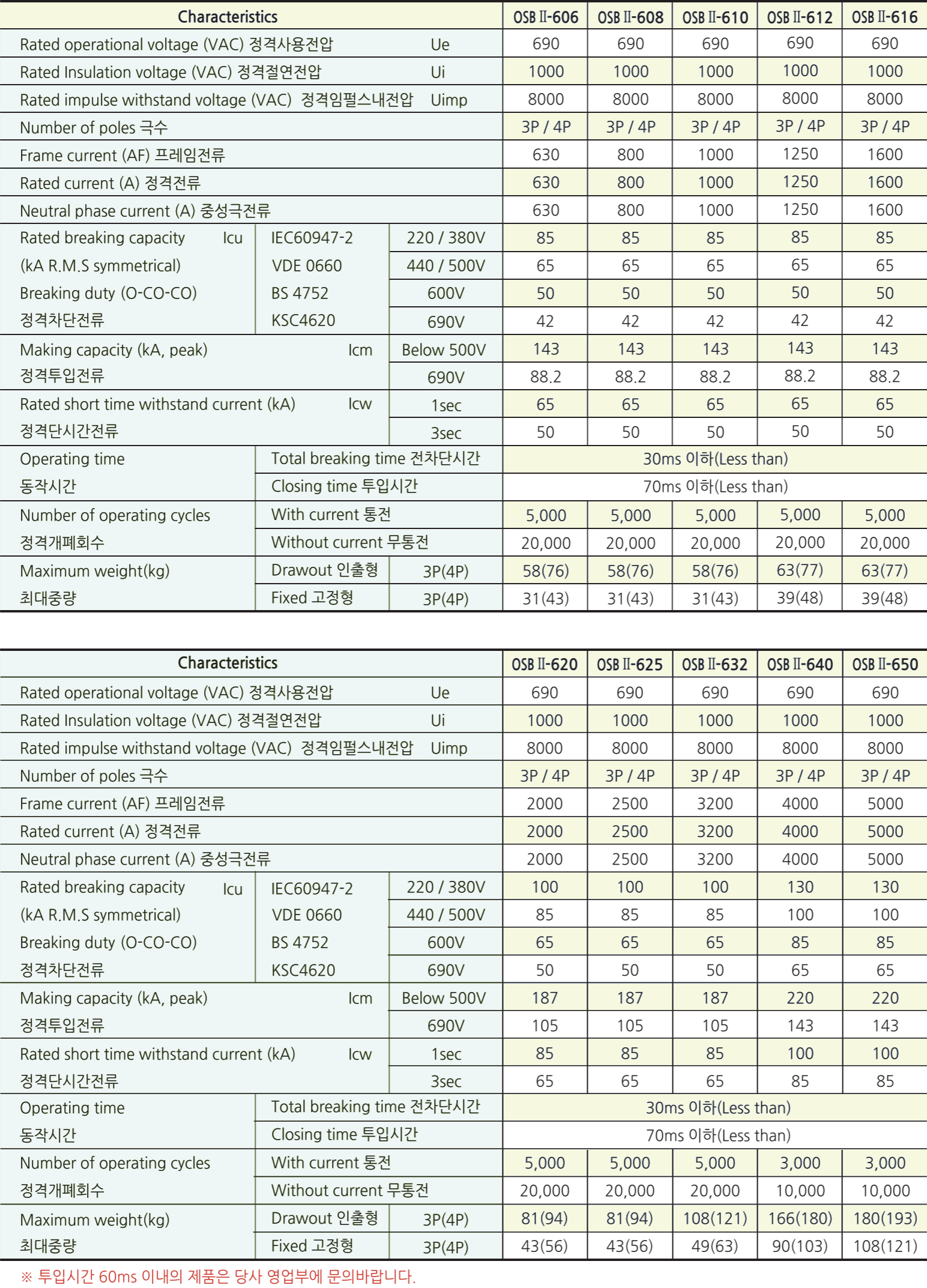

OSB-II ACB


배전반 설계를 위한 최적화를 실현하였습니다.

  - 외형 크기를 표준화 하였습니다.
  - 경량화로 배전반을 설치하는데 적합합니다.


OCR부를 국내 업체 최초로 Digital화 하였습니다.정확한 계측 및 고속 동작으로 사고시 신속하게 대응합니다.
  - 사용자의 현장조건에 적합하게 사용할 수 있도록 Setting 범위를 단계로 세밀하게 구분하였습니다.


다양한 기종을 구비하였습니다.

  - 630AF, 800AF, 1000AF, 1250AF, 1600AF, 2000AF, 2500AF, 3200AF, 4000AF, 5000AF

O-SUNG ACB Catalog Download

O-SUNG ACB CAD Datasheet Download

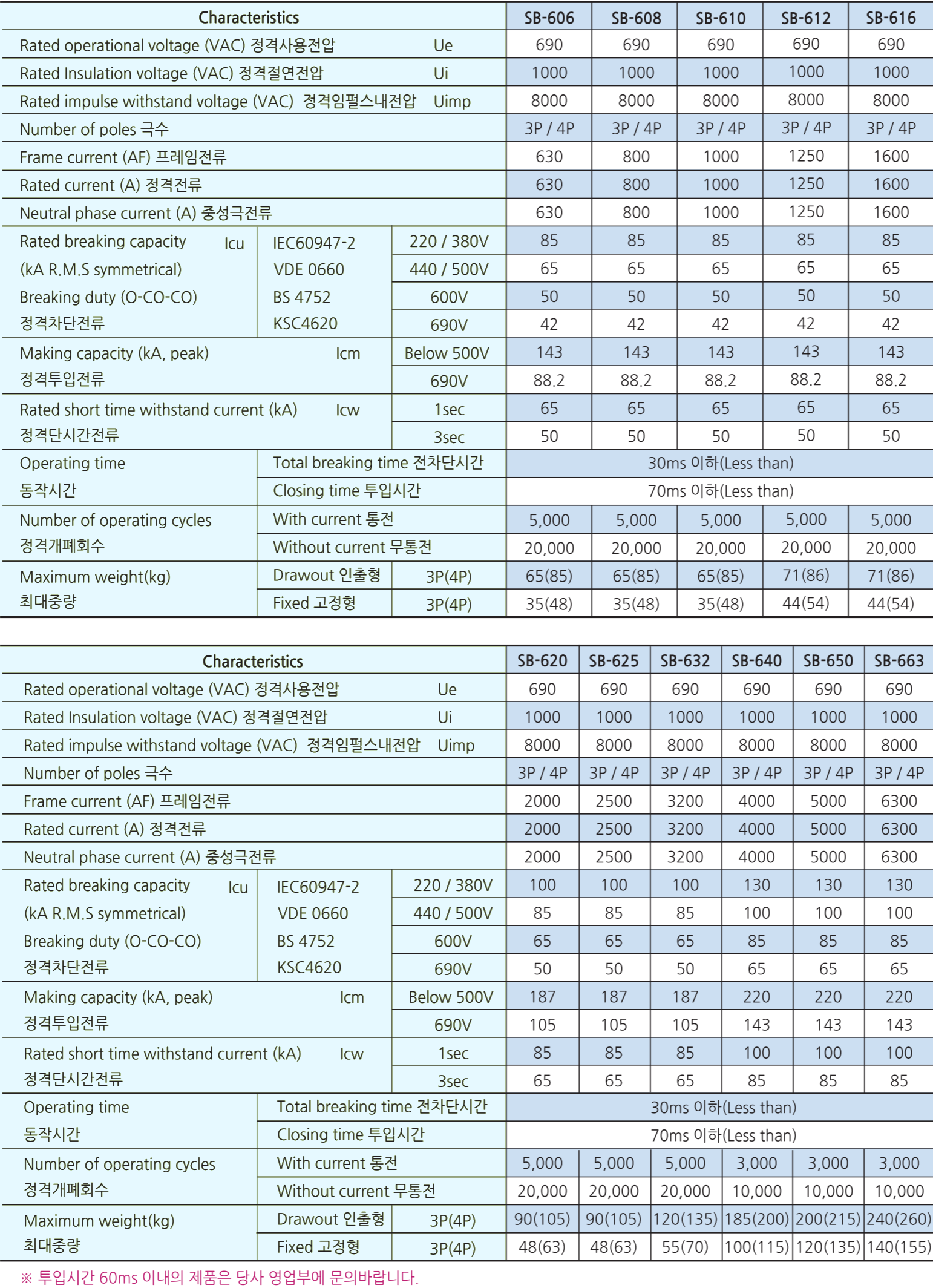

SB ACB


배전반 설계를 위한 최적화를 실현하였습니다.

  - 외형 크기를 표준화 하였습니다.
  - 경량화로 배전반을 설치하는데 적합합니다.


OCR부를 국내 업체 최초로 Digital화 하였습니다.
  - 정확한 계측 및 고속 동작으로 사고시 신속하게 대응합니다.
  - 사용자의 현장조건에 적합하게 사용할 수 있도록 Setting 범위를 단계로 세밀하게 구분하였습니다.
  - GR은 대전류 방식의 기기보호와 NGR을 이용한 인명보호 기능까지 수행합니다.


다양한 기종을 구비하였습니다.

  - 630AF~1600AF, 2000AF, 2500AF, 3200AF, 4000AF, 5000AF, 6300AF

O-SUNG ACB LINE UP

OSB-II TYPE

SB TYPE

O-SUNG ACB OSB-II, SB INFORMATION

금액조정 및 견적문의  010-7771-5409 / 2sk@2sk.co.kr

Price Information

OSB-II ACB

Pole

Ampere

Type

Set Price

Retrofit

● OSB II-606-D-3POLE

●  OSB II-606-D-4POLE

3P

4P

630A

인출형 Draw-Out

1,316,000

1,505,000

1,711,000

1,956,000

● OSB II-608-D-3POLE

●  OSB II-608-D-4POLE

3P

4P

800A

인출형 Draw-Out

1,375,000

1,570,000

1,787,000

2,040,000

● OSB II-610-D-3POLE

●  OSB II-610-D-4POLE

3P

4P

1000A

인출형 Draw-Out

1,388,000

1,641,000

1,840,000

2,133,000

● OSB II-612-D-3POLE

●  OSB II-612-D-4POLE

3P

4P

1250A

인출형 Draw-Out

1,503,000

1,744,000

1,954,000

2,267,000

● OSB II-616-D-3POLE

●  OSB II-616-D-4POLE

3P

4P

1600A

인출형 Draw-Out

1,688,000

1,969,000

2,194,000

2,559,000

● OSB II-620-D-3POLE

●  OSB II-620-D-4POLE

3P

4P

2000A

인출형 Draw-Out

1,914,000

2,272,000

2,488,000

2,953,000

● OSB II-625-D-3POLE

●  OSB II-625-D-4POLE

3P

4P

2500A

인출형 Draw-Out

2,285,000

2,764,000

2,970,000

3,593,000

● OSB II-632-D-3POLE

●  OSB II-632-D-4POLE

3P

4P

3200A

인출형 Draw-Out

2,702,000

3,219,000

3,512,000

4,185,000

● OSB II-640-D-3POLE

●  OSB II-640-D-4POLE

3P

4P

4000A

인출형 Draw-Out

5,667,000

6,666,000

7,367,000

8,665,000

● OSB II-650-D-3POLE

●  OSB II-650-D-4POLE

3P

4P

5000A

인출형 Draw-Out

7,057,000

7,660,000

9,174,000

9,958,000

- 부가세 별도 금액입니다.


금액조정 및 견적문의  010-7771-5409 / 2sk@2sk.co.kr

SB ACB

Pole

Ampere

Type

Set Price

Retrofit

● SB-66-3POLE

●  SB-66-4POLE

3P

4P

630A

인출형 Draw-Out

1,696,000

1,980,000

-

-

● SB-68-3POLE

●  SB-68-4POLE

3P

4P

800A

인출형 Draw-Out

1,787,000

2,030,000

-

-

● SB-610-3POLE

●  SB-610-4POLE

3P

4P

1000A

인출형 Draw-Out

1,817,000

2,090,000

-

-

● SB-612-3POLE

●  SB-612-4POLE

3P

4P

1250A

인출형 Draw-Out

2,195,000

2,607,000

-

-

● SB-616-3POLE

●  SB-616-4POLE

3P

4P

1600A

인출형 Draw-Out

2,200,000

2,620,000

-

-

● SB-620-3POLE

●  SB-620-4POLE

3P

4P

2000A

인출형 Draw-Out

2,859,000

3,494,000

-

-

● SB-625-3POLE

●  SB-625-4POLE

3P

4P

2500A

인출형 Draw-Out

2,929,000

3,499,000

-

-

● SB-632-3POLE

●  SB-632-4POLE

3P

4P

3200A

인출형 Draw-Out

3,439,000

4,167,000

-

-

● SB-640-3POLE

●  SB-640-4POLE

3P

4P

4000A

인출형 Draw-Out

7,893,000

9,554,000

-

-

● SB-650-3POLE

●  SB-650-4POLE

3P

4P

5000A

인출형 Draw-Out

8,510,000

9,867,000

-

-

● SB-660-3POLE

●  SB-660-4POLE

3P

4P

6300A

인출형 Draw-Out

10,987,000

13,255,000

-

-

- 부가세 별도 금액입니다.


OSB II Catalog

SB Catalog
