운영전기 Current Transformer
운영전기 Current Transformer
2SK
1500-1234
Power & Automation
카다로그
운영전기 C.T
운영전기 환형타입 C.T
Current Transformer
WYCR Type C.T Characteristics
Dimension
| Model | A | B | C | D | E | F | H |
| WYCR-15, 30, 40 | 60 | 76 | 39 | 70 | 60 | 50 | 84 |
| WYCR-60 | 60 | 76 | 57 | 114 | 60 | 80 | 112 |
| Product | 비율 | 부담 (Burden) | Class (%) | Price | 홀사이즈 | 출력 |
| WYCR-15 | 50/5 60/5 | 2.5vA | 1.0% | 55,100 58,100 | 15Ø | 5A or 1A |
| WYCR-30 | 50/5 60/5 75/5 | 2.5vA | 3.0% | 82,800 96,900 102,700 | 30Ø | 5A or 1A |
| Product | 비율 | 부담 (Burden) | Class (%) | Price | 홀사이즈 | 출력 |
| WYCR-15 | 75/5 100/5 120/5 150/5 200/5 | 5vA | 1.0% | 67,400 81,200 81,200 81,200 81,200 | 15Ø | 5A or 1A |
| WYCR-30 | 100/5 120/5 150/5 | 5vA | 3.0% | 82,800 96,900 102,700 | 30Ø | 5A or 1A |
200/5 250/5 300/5 | 5vA | 1.0% | 82,800 96,900 102,700 | |||
| WYCR-40 | 250/5 300/5 400/5 500/5 600/5 | 5vA | 1.0% | 67,400 81,200 81,200 81,200 81,200 | 40Ø | 5A or 1A |
| Product | 비율 | 부담 (Burden) | Class (%) | Price | 홀사이즈 | 출력 |
| WYCR-30 | 200/5 250/5 300/5 | 15vA | 1.0% | 81,200 81,200 81,200 | 30Ø | 5A or 1A |
| WYCR-40 | 250/5 300/5400/5 500/5 600/5 | 15vA | 1.0% | 82,800 96,900 102,700 102,700 102,700 | 40Ø | 5A or 1A |
| WYCR-60 | 100/5 150/5200/5 250/5 300/5 400/5 500/5 600/5 800/51000/5 1200/5 1500/5 | 15vA | 1.0% | 67,400 81,200 81,200 81,200 81,200 67,400 81,200 81,200 81,200 81,200 81,200 81,200 | 60Ø | 5A or 1A |

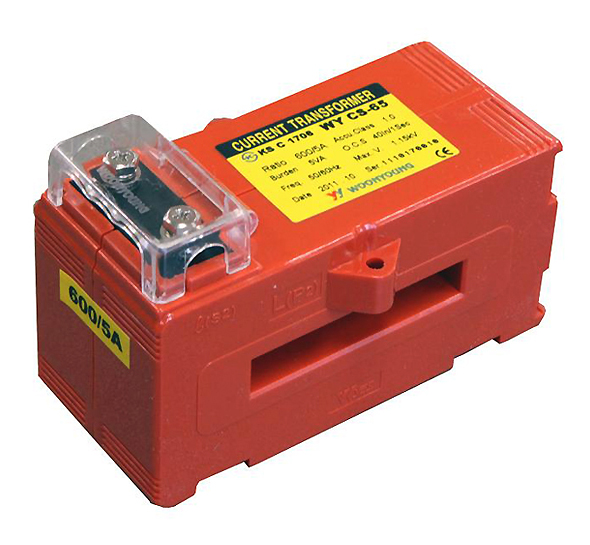

운영전기 각타입 C.T
Current Transformer
WYCS Type C.T Characteristics

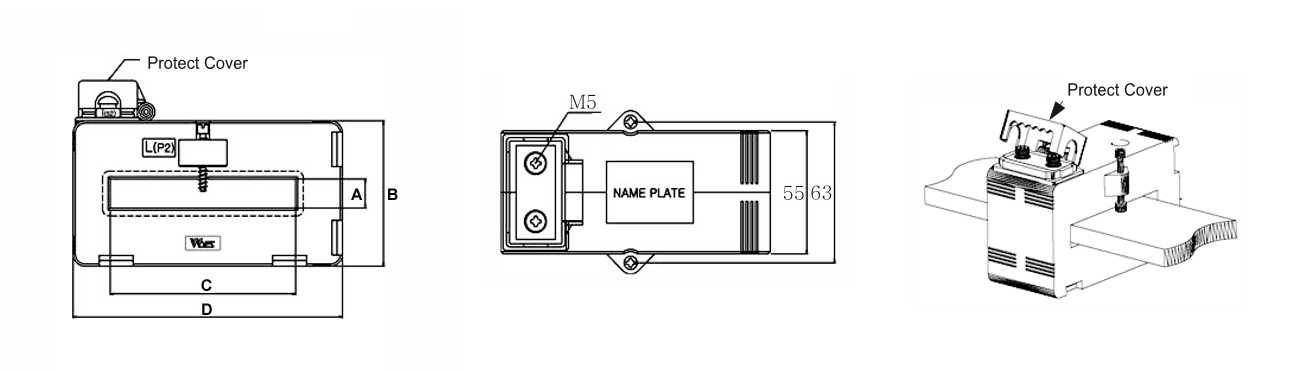

Dimension
| Model | A | B | C | D |
| WYCS-32 | 7 | 77 | 32 | 67 |
| WYCS-42 | 7 | 77 | 42 | 67 |
| WYCS-45 | 10 | 77 | 45 | 67 |
| WYCS-44 | 8 | 60 | 44 | 97 |
| WYCS-65 | 11 | 65 | 65 | 124 |
| WYCS-85 | 13 | 65 | 85 | 124 |
| WYCS-104 | 30 | 102 | 104 | 170 |
| WYCS-130 | 40 | 112 | 130 | 208 |
| WYCR-160 | 65 | 153 | 160 | 246 |
| Product | 비율 | 부담 (Burden) | Class (%) | Price | 출력 |
| WYCS-32 | 100/5 120/5 150/5 200/5 250/5 | 5vA | 1.0% | 55,100 58,100 58,100 58,100 58,100 | 5A or 1A |
| WYCS-42 | 300/5 400/5 | 5vA | 1.0% | 96,900 102,700 | 5A or 1A |
| WYCS-45 | 400/5 500/5 600/5 | 5vA | 1.0% | 82,800 96,900 102,700 | 5A or 1A |
| WYCS-44 | 100/5 150/5200/5 | 5vA | 1.0% | 67,400 81,200 81,200 | 5A or 1A |
| Product | 비율 | 부담 (Burden) | Class (%) | Price | 출력 |
| WYCS-32 | 100/5 120/5 150/5 200/5 250/5 | 15vA | 1.0% | 67,400 81,200 81,200 81,200 81,200 | 5A or 1A |
| WYCS-42 | 300/5 400/5 | 15vA | 1.0% | 82,800 96,900 | 5A or 1A |
| WYCS-45 | 400/5 500/5 600/5 | 15vA | 1.0% | 82,800 96,900 102,700 | 5A or 1A |
| WYCS-44 | 100/5 120/5 150/5 200/5 250/5 300/5 | 15vA | 1.0% | 67,400 81,200 81,200 81,200 81,200 81,200 | 5A or 1A |
| WYCS-65 | 400/5 500/5 600/5 | 15vA | 1.0% | 81,200 81,200 81,200 | 5A or 1A |
| WYCS-85 | 600/5 800/5 1000/5 1200/5 | 15vA | 1.0% | 81,200 81,200 81,200 81,200 | 5A or 1A |
| WYCS-104 | 1200/5 1500/5 2000/5 | 15vA | 1.0% | 81,200 81,200 81,200 | 5A or 1A |
