Model	Pole (P)	Ampere (AT)	Frame (AF)	460V (KA)	판매가	BUY NOW
EBN52c EBN53c	2P 3P	15, 20, 30, 40, 50A	50AF	14kA	50,000 52,700	EBN52cEBN53c

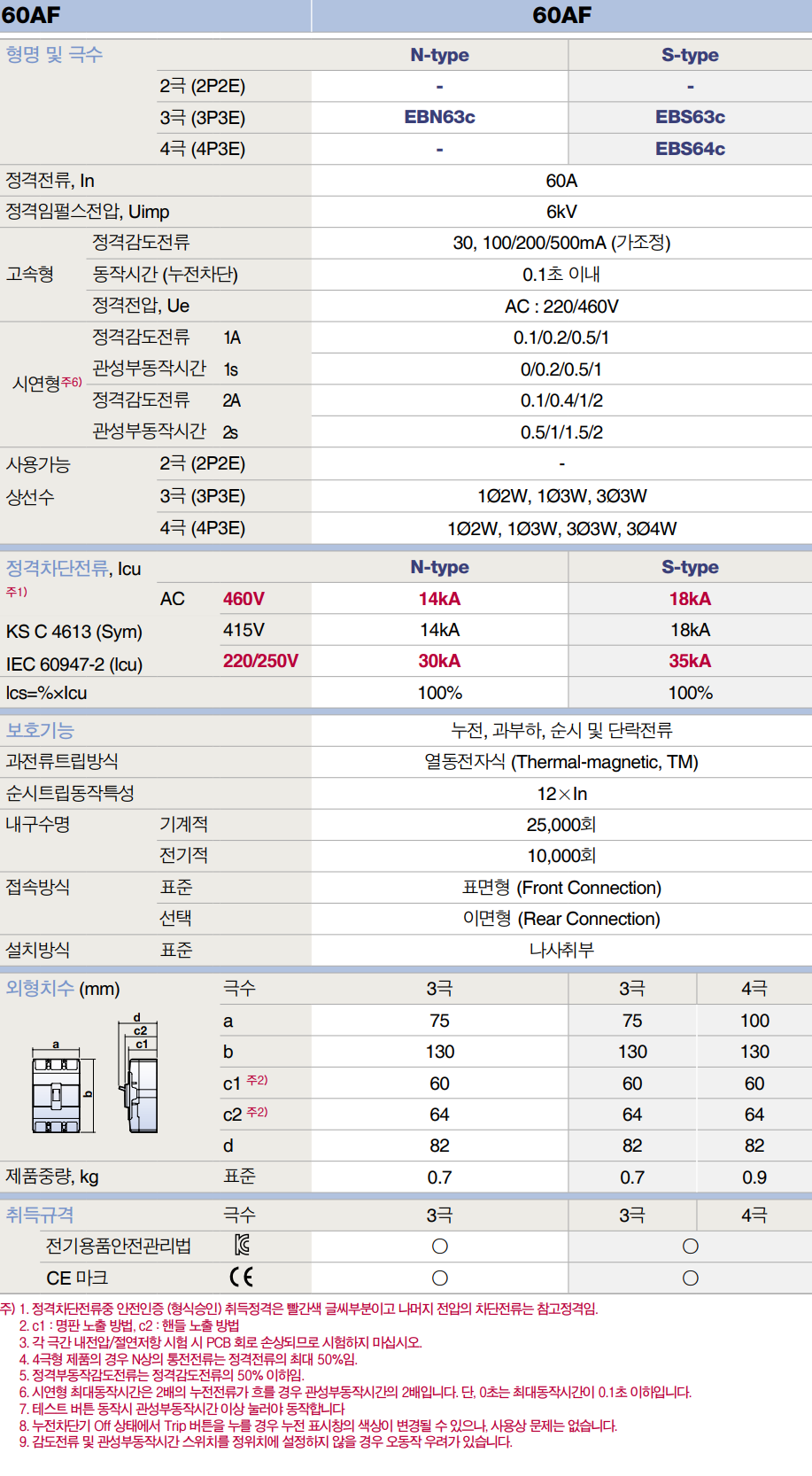

EBN63c	3P	(15, 20, 30, 40, 50) 60A	60AF	14kA	55,300	EBN63c
EBN102c EBN103c EBN104c	2P 3P 4P	15, 20, 30, 40, 50A 60, 75, 100A	100AF	18kA	69,800 84,400 101,500	EBN102cEBN103cEBN104c
EBN202c EBN203c	2P 3P	100*, 125, 150, 175A 200, 225, 250A	250AF	26kA	156,500 183,900	EBN202cEBN203c
EBN403c EBN404c	3P 4P	250, 300, 350, 400A	400AF	37kA	337,400 449,600	EBN403cEBN404c
EBN603c *	3P	500, 630A	630AF	37kA	651,800	EBN603c
EBN803c	3P	700, 800A	800AF	37kA	790,400	EBN803c

* 부가세 별도 금액입니다.

METASOL MCCB / ELCB Auxliary Contact 보조접점

보조접점	Note	판매가	BUY NOW
AX, LWT(R) 30~250AF AX, LWT(T) 30~250AF AX+AL, LWT(R) 30~250AF AX+AL, LWT(T) 30~250AF	보조접점 (좌측 취부) 보조접점 (우측 취부) 보조+경보접점 (좌측 취부) 보조+경보접점 (우측 취부)	6,300 6,300 12,600 12,600	AX (30~250AF) BUY
AX, LWT 400~800AF	보조접점 (좌/우 취부)	7,700	AX (400~800AF) BUY
AX, LWT 1000~1200AF AX+AL, LWT 1000~1200AF	보조접점 (좌/우 취부) 보조+경보접점 (좌/우 취부)	10,900 21,700	AX (1000~1200AF) BUY

* 부가세 별도 금액입니다.

METASOL MCCB / ELCB Alarm Contact 경보접점

경보접점	Note	판매가	BUY NOW
AL, LWT(R) 30~250AF AL, LWT(T) 30~250AF AX+AL, LWT(R) 30~250AF AX+AL, LWT(T) 30~250AF	경보접점 (좌측 취부) 경보접점 (우측 취부) 보조+경보접점 (좌측 취부) 보조+경보접점 (우측 취부)	6,300 6,300 12,600 12,600	AL (30~250AF) BUY
AL, LWT 400~800AF	경보접점 (좌/우 취부)	7,700	AL (400~800AF) BUY
AL, LWT 1000~1200AF AX+AL, LWT 1000~1200AF	경보접점 (좌/우 취부) 보조+경보접점 (좌/우 취부)	10,900 21,700	AL (1000~1200AF) BUY

* 부가세 별도 금액입니다.

* (R)은 차단기 왼쪽에 붙는 접점입니다. (L)은 차단기 오른쪽에 붙는 제품입니다.

> 보통 AX는 (R), AL은 (T)로 부착합니다.

* 트립코일(SHT)은 오른쪽(T)만 부착가능함으로 SHT부착예정이면 꼭 (R)제품을 사용하셔야 합니다.

* ABN52 / ABN102는 (T)접점만 부착 가능합니다.

* 더블접점 (AX+AL)은 주문사양입니다. 납기 확인 후 발주바랍니다.

* 400~800AF은 좌우 아무곳이나 부착가능합니다.

* 보조접점 / 경보접점의 차이

> 전기의 ON/OFF상황을 보는것 : 보조접점(AX), 사고여부(트립)상황을 보는것 : 경보접점(AL)

METASOL MCCB / ELCB Safety Cover, 일반 보호커버

보호커버	Frame	Pole	판매가	BUY NOW
TCS-13 / TCL-13 TCS-14 / TCL-14	30~100AF	2, 3P 4P	800 1,300	COVER (30~250AF) BUY
TCS-23 / TCL-23 TCS-24 / TCL-24	125AF	2, 3P 4P	800 1,300	COVER (30~250AF) BUY
TCS-33 / TCL-33 TCS-34 / TCL-34	250AF	2, 3P 4P	1,300 1,500	COVER (30~250AF) BUY
T1-43A T1-44A	400AF	2P, 3P 4P	23,800 23,800	COVER (400~800AF) BUY
T1-63A T1-64A	630~800AF	2P, 3P 4P	23,800 23,800	COVER (400~800AF) BUY

* 부가세 별도 금액입니다.

* TCS : 숏타입커버, TCL : 롱타입커버입니다. TCL타입은 별도 문의 바랍니다. (재고 미보유)

* T1 (400~800AF)는 투명아크릴 커버입니다.

METASOL MCCB / ELCB Handle, 핸들

핸들	Note	Note2	판매가	BUY NOW
DH100 S/L/R DHK100 S/L/R EH100 S/L/R N-30c S/L/R	30~100AF	기본형 Key-Lock 형 확장핸들형 표면형	11,600 27,500 34,400 12,400	HANDLE (30~100AF) BUY
DH125 S/L/R DHK125 S/L/R EH125 S/L/R N-40c S/L/R	125AF	기본형 Key-Lock 형 확장핸들형 표면형	11,600 29,500 34,400 12,400	HANDLE (125AF) BUY
DH250 S/L/R DHK250 S/L/R EH250 S/L/R N-50c S/L/R	250AF	기본형 Key-Lock 형 확장핸들형 표면형	13,700 32,600 34,400 12,400	HANDLE (250AF) BUY
E-70U N-70	400AF	확장핸들형 표면형	40,800 42,100	HANDLE (400AF) BUY
E-80U N-80	630, 800AF	확장핸들형 표면형	45,500 42,100	HANDLE (630~800AF) BUY

* 부가세 별도 금액입니다.

* 형명 제일뒤에 S/L/R이 붙는데 이는 차단기가 옆으로 부착되도 핸들은 바로 보일수 있게 해줍니다.

> EX) DH-100S / EH-100L

> 기본형은 S형입니다.

* 핸들은 대부분 주문형이오니 납기 확인하시고 주문주시기 바랍니다.

트립코일	Note	판매가	BUY NOW
SHT, LWT 400~800AF	트립코일 전선타입	21,800	SHT (400~800AF) BUY
SHT, LWT 1000~1200AF	트립코일 전선타입	50,700	SHT (1000~1200AF) BUY

부스바	Note	Note2	판매가	BUY NOW
BUSBAR 602 BUSBAR 603 BUSBAR 604	630AF	2P 3P 4P	24,400 38,700 51,300	BUSBAR (630AF) BUY
BUSBAR 802 BUSBAR 803 BUSBAR 804	800AF	2P 3P 4P	29,700 47,100 54,600	BUSBAR (800AF) BUY
